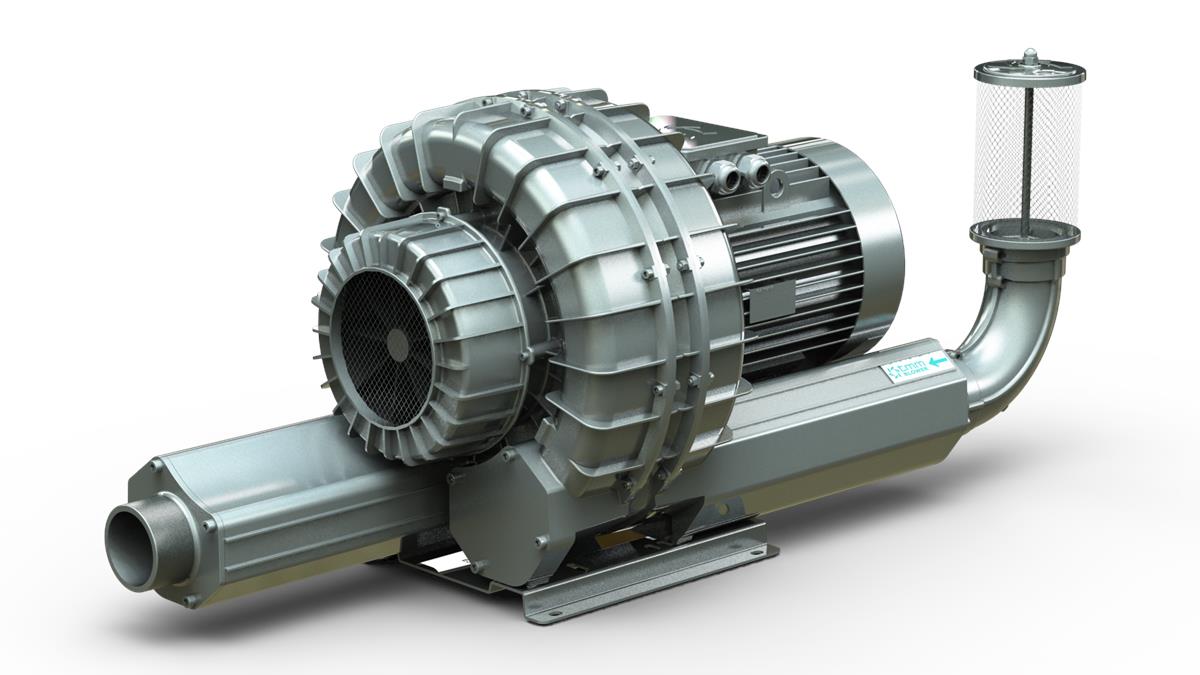

Side Channel Blower - Double Stage

Direct coupled engine

Aliminum injection cast housing and fan

Capacity: 160 - 1550 m3/h

Operating Temperature -15 to +40°C
Monophase option for 0.25 – 3 kW range

Pressure applications:

+500 mbar continues max working pressure

+750 mbar instant max pressure

Vacuum applications:

-350 mbar  continues max working pressure

-600 mbar instant max pressure

PRESSURE / FLOW VALUES (m3/h)

BLOWER CODE   POWER UNIT 0 mbar 50 mbar 100 mbar 150 mbar 200 mbar 250 mbar 300 mbar 400 mbar 500 mbar 600 mbar 700 mbar 800 mbar 900 mbar 1000 mbar
EJ 5 KBZ   1,5 kW 250 175 140 110 75 60 30
EJ 6 KBZ   2,2 kW 250 190 150 120 90 70 40
EJ 7 KBZ   4 kW 320 280 250 230 200 175 150 100 60
EJ 9 KBZ   5,5 kW 360 300 260 240 220 190 160 110 70
EJ 9 KBZ   7,5 kW 380 320 280 265 250 225 200 160 140 110 80 40
EJ 9 KBZ   11 kW 410 350 310 290 280 265 250 200 170 140 110 70
EJ 10 KBZ   11 kW 700 650 600 550 500 470 430 350 300 250 180 120 50
EJ 11 KBZ   15 kW 1000 940 880 830 740 700 630 570 500 350 200 100
EJ 11 KBZ   18,5 kW 1050 950 900 850 800 750 660 600 520 400 300 250 190 120
EJ 12 KBZ   22 kW 1700 1580 1480 1420 1370 1320 1280 1160 990 780 540 350 100



VACUUM / FLOW VALUES (m3/h)

BLOWER CODE   POWER UNIT 0 mbar 50 mbar 100 mbar 150 mbar 200 mbar 250 mbar 300 mbar 350 mbar 400 mbar 450 mbar 500 mbar 550 mbar 600 mbar
EJ 5 KBZ   1,5 kW 220 175 125 75 10
EJ 6 KBZ   2,2 kW 250 180 150 120 75 25
EJ 7 KBZ   4 kW 320 280 250 230 200 150 100 30
EJ 9 KBZ   5,5 kW 360 280 250 225 190 150 90 10
EJ 9 KBZ   7,5 kW 380 320 280 265 250 190 140 90 60
EJ 9 KBZ   11 kW 410 350 310 290 280 265 230 180 125 20
EJ 10 KBZ   11 kW 700 650 600 550 500 460 400 320 200 25
EJ 11 KBZ   15 kW 1000 940 880 830 740 700 580 410 210 10
EJ 11 KBZ   18,5 kW 1050 950 900 850 800 750 660 600 500 400 270 220 80
EJ 12 KBZ   22 kW 1700 1580 1480 1420 1300 1200 1100 900 600 300
